HCS4100 – Rapid Cure System (RCS)™
A quick, portable curing system developed with support from Kineticure, LLC and Cornerstone Research Group, Inc. (CRG). The patented Rapid Cure System (RCS)™ utilizes safe, localized heating methods to accelerate the cure of adhesive bonds, particularly in fastening applications (e.g. nutplates).
The Rapid Cure System’s multiple, independent control zones permit a single user to perform several installation operations concurrently, increasing efficiency and reducing costs.
- Ruggedized enclosure with built-in handles and wheels
- 10 independent heating control zones
- Cascade control scheme improves heater response and safety
- Multiple tailorable alarms per heating zone
- Independent “limit” circuit prevents heater over-temperature
- Touchscreen User Interface
- Tiered Operating Menu for multiple user categories
- Customizable log-in profiles with password protection
- Multiple configurable cure profiles
- Multi-colored LED status indicator per zone
- Audible and visible alarms
- Optional auto-updating cure feature reduces operator burden
- Built in data logging and optional USB port for data transfer
- 110 – 120 VAC (47-63Hz)
- Resettable circuit breaker for each heating zone and main controller
- Multi-pin connectors for each zone simplify wiring of heaters and thermocouples

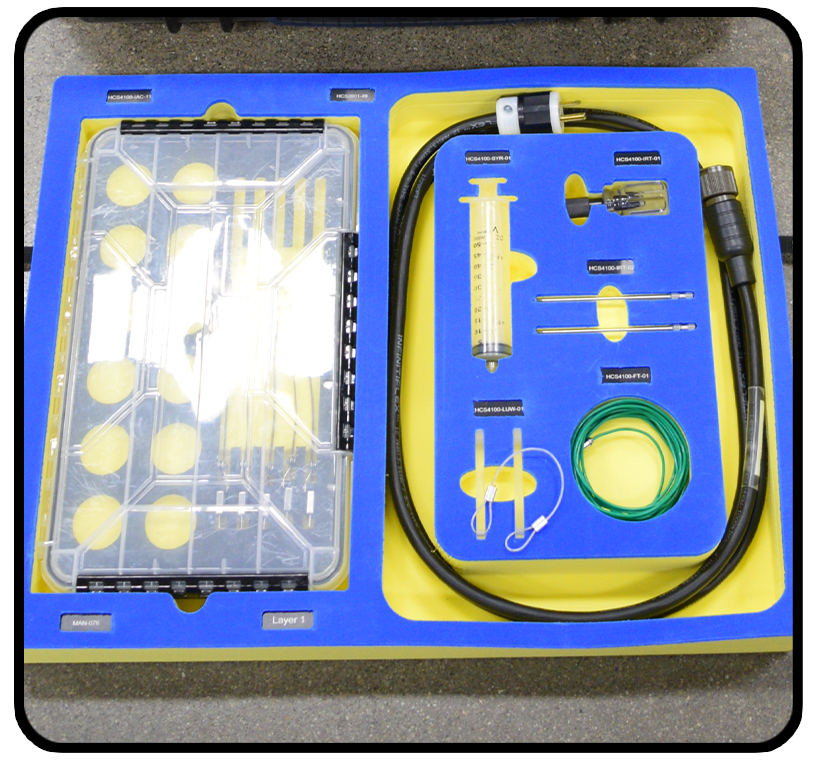

- Mating combination heater and thermocouple cables streamline installation
- Weight: 62 lbs (28kg)
- Dimensions – 26.4″ x 20.1″ x 14.6″
- Input Voltage: 110-120 VAC (47-63 Hz)
- Current Input :`15 Amps
- Current Output: .5 Amps (per zone)
- Heater Temperature Range – Ambient to 375 °F
- Cascade control scheme improves heater response and safety
- 10 Independent Zones of Control
- Cascade PID using Part Thermocouple Average
- Display Resolution: .1 °F
- Program Resolution: .1 °F
- Temperature Accuracy: ±2 °F
